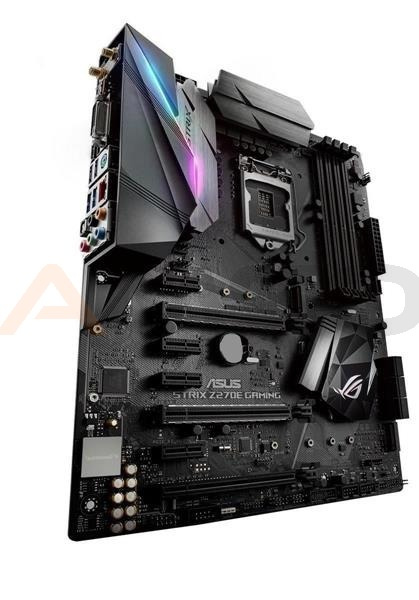

Płyta ASUS ROG STRIX Z270E GAMING /Z270/DDR4/SATA3/M.2/USB3.1/WF/BT/PCIe3.0/s.1151/ATX
ID:
33529
Kod:
PGASI9I93030
Chipset płyty głównej: Intel® Z270
Format płyty: ATX
Gniazda karty dźwiękowej: Wewnętrzne gniazdo audio przedniego panelu 5x Audio Jack Wyjście optyczne S/PDIF
Gniazda karty graficznej: DVI-D HDMI DisplayPort
Gniazdo procesora: Socket 1151
Gniazdo zasilania: ATX (24-pin) + ATX12V (8-pin)
Ilość złącz pamięci DDR3: 0
Informacje dodatkowe: Windows® 10 64-bit - 7th Generation Intel® Processors Windows® 10 64-bit/8.1 64-bit/7 32-bit & 64-bit - 6th Generation Intel® C M.2_1, with M Key, type 2242/2260/2280/22110 storage devices support M.2_1 support both SATA & PCIE mode M.2_2, with M Key, type 2242/2260/2280 storage devices support M.2_2 support x4 PCIE mode The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device The M.2_2 socket shares SATA_56 ports when use M.2 PCIE mode device in X4 Supports Intel® Smart Response Technology (zależy od użytego procesora) Intel® Optane™ Memory Ready (7th Generation Intel® processors) ROG GameFirst IV is only available for Windows® 10/8.1 64-bit WiFi: Supports dual band frequency 2.4/5 GHz, Supports MU-MIMO USB 3.1 front panel connector shares bandwidth with PCIE_x1_2 and PCIE_x1_4 USB 3.1 front header is connected = PCIE_x1_2 & PCIE_x1_4 will be disabled Support for the Bluetooth specification depends on the Windows version Win7/8.1 support up to Bluetooth 4.0
Inne porty i gniazda: RGB Header(s) Gniazdo DRCT CPU OV Gniazdo ROG extension (ROG_EXT) Gniazdo modułu TPM Gniazdo High AMP Fan Złącze T_Sensor Gniazdo AIO PUMP 3x 3D Mount screw port(s) USB 3.1 front panel connector
Maksymalna wielkość pamięci: 64 GB
Obsługiwane typy procesorów: Intel Core i3 6th Generation Intel Core i3 7th Generation Intel Core i5 6th Generation Intel Core i5 7th Generation Intel Core i7 6th Generation Intel Core i7 7th Generation Intel Celeron™ (Socket 1151) Intel Pentium™ (Socket 1151)
Opakowanie: BOX
Opis ogólny: Płyta ASUS ROG STRIX Z270E GAMING
Port Bluetooth: Bluetooth V4.1
Port LAN: 1x Gigabit LAN RJ-45 (Intel® I219V)
Port PS/2: Port combo klawiatury/myszy PS/2
Port Wi-Fi: IEEE 802.11a/b/g/n/ac
Port równoległy (LPT): Brak
Port szeregowy (COM): 1x wewnętrzne gniazdo portu COM
Porty FireWire (IEEE-1394): Brak
Porty USB 2.0: maks. 6 : 0 na panelu tylnym + 6 (3 gniazda) na płycie
Porty USB 3.x: maks. 8 : 4x 3.0 + 1x 3.1 Type-A + 1x 3.1 Type-C na panelu tylnym + 2 x 3.0 (1 gniazdo) na płycie
Rozwiązania producenta MB: ASUS ROG RAMCache II ASUS ROG CPU-Z ASUS ROG CloneDrive ASUS ROG Aura ASUS OC Design - ASUS PRO Clock Technology ASUS 5-Way Optimization by Dual Intelligent Processors 5 ASUS TPU ASUS Auto Tuning ASUS TurboV ASUS GPU Boost ASUS Fan Xpert 4 ASUS Gamer's Guardian ASUS DRAM Overcurrent Protection ASUS Stainless Steel Back I/O ASUS Highly Durable Components ASUS DIGI+ VRM Utility ASUS SafeSlot ASUS AI Suite 3 ASUS AI Charger ASUS ESD Guards ASUS PC Cleaner ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS Q-Design ASUS Q-Shield ASUS Q-LED ASUS Q-Slot ASUS Q-DIMM ASUS Gaming Aesthetics ASUS Turbo App
Standard pamięci: DDR4-2133 DDR4-2400 (OC) DDR4-2666 (OC) DDR4-2800 (OC) DDR4-3000 (OC) DDR4-3200 (OC) DDR4-3300 (OC) DDR4-3333 (OC) DDR4-3400 (OC) DDR4-3466 (OC) DDR4-3600 (OC) DDR4-3733 (OC) DDR4-3866 (OC)
Tryb pracy pamięci RAM: Dual Channel
Uwagi do karty dźwiękowej: Dual Headphone Amplifiers Impedance sense for front and rear headphone outputs High quality 120dB SNR stereo playback output and 113dB SNR recording input SupremeFX Shielding Technology Supports up to 32-Bit/192kHz playback (not supported for 8-Channel audio) Dedicated audio PCB layers Premium Japanese-made audio capacitors Sonic Radar III Sonic Studio III
Uwagi do karty graficznej: Maks. rozdz. 1920x1200@60Hz DVI-D / 4096x2160@24Hz HDMI / 4096x2304@60Hz DP Maksymalna pamięć współdzielona – 1024 MB Wyjścia VGA do pracy wymagają CPU z GPU Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider
